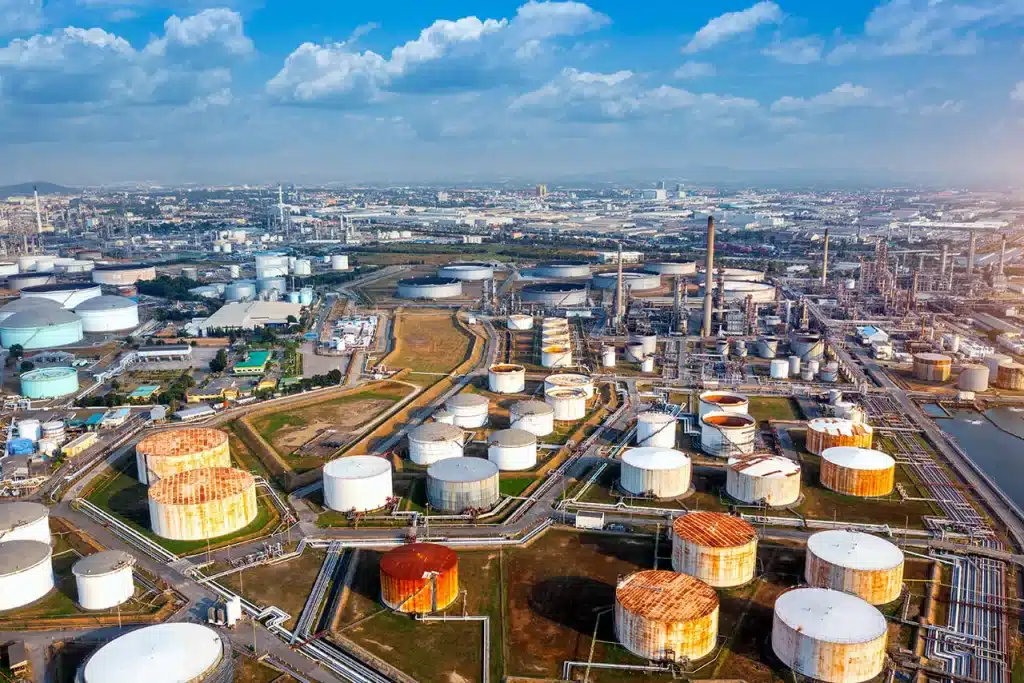

As global energy demand grows steadily, the need for reliable and scalable storage infrastructure becomes increasingly important. Tank farm construction offers a long-term, cost-effective, and strategic solution for storing petroleum products, chemicals, and biofuels. With the right design and execution, a tank farm becomes more than storage—it becomes a competitive advantage.
Why Invest in a Tank Farm?
A well-planned tank farm adds both operational and financial value. Below are the key reasons why companies choose to invest:
| Advantage | Customer Value |
|---|---|
| Cost Efficiency | Reduces dependency on third-party storage and port terminal fees |
| Operational Flexibility | Allows better scheduling for imports and exports |
| Supply Chain Resilience | Minimizes risks from port congestion or geopolitical disruptions |
| Scalability | Enables easy expansion based on growing demand |
| Asset Appreciation | Enhances company valuation and attracts investor interest |
Step-by-Step Construction Process
The construction of a modern tank farm typically follows several key phases. Each step is essential to ensure long-term performance and safety.
| Phase | Details |
|---|---|
| 1. Site Assessment | Geotechnical surveys, environmental permits, and location strategy |
| 2. Engineering Design | 3D layout planning, hazard zone mapping, and foundation calculations |
| 3. Civil Works | Earthworks, concrete bunds, and access road installation |

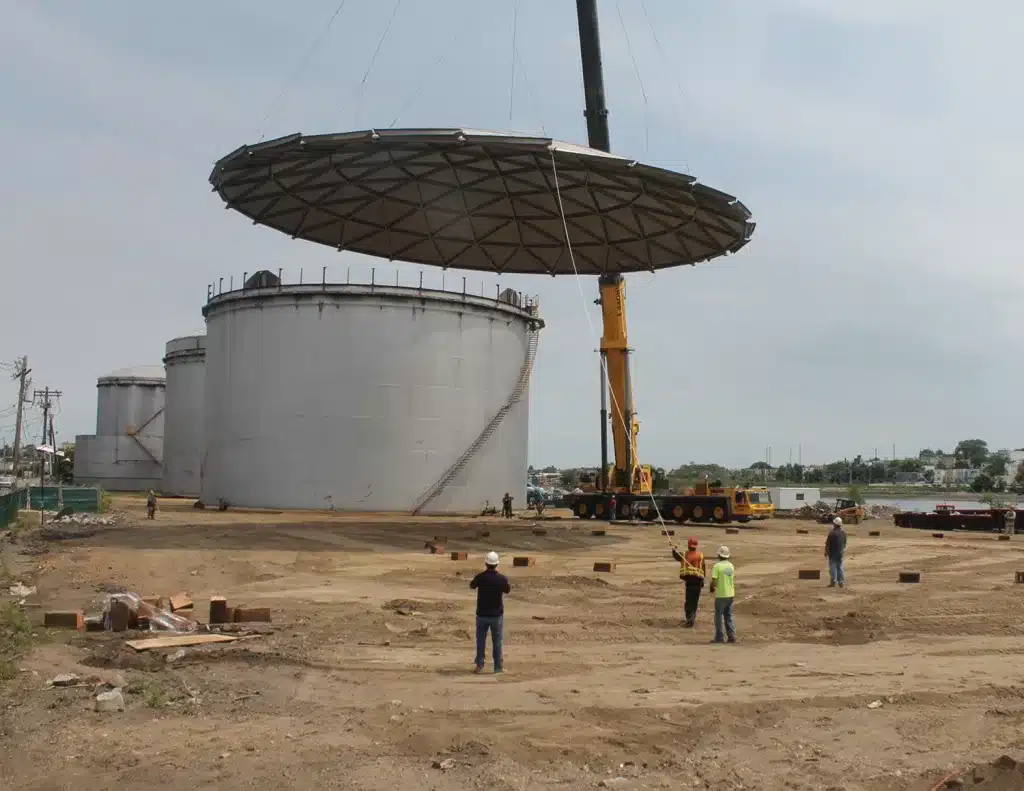

| 4. Tank Installation | Steel tank erection, roof installation, and protective coatings |
| 5. Piping & Valves | Product pipelines, firefighting lines, and metering stations |
| 6. Automation Systems | SCADA integration, pressure gauges, and remote volume tracking |
| 7. Commissioning | Pressure tests, safety certifications, and final handover |
International Standards and Compliance
For long-term viability, all tank farms must comply with recognized global standards. These ensure safety, durability, and legal approval across markets.
| Standard | Function |
|---|---|
| API 650 / API 620 | Tank construction and design standards |
| NFPA 30 / 11 | Fire protection and foam system regulations |
| OSHA / HSE | Site and personnel safety protocols |
| ATEX / IECEx | Explosion-proof zone equipment compliance |
| ISO 14001 / 45001 | Environmental and occupational health certifications |

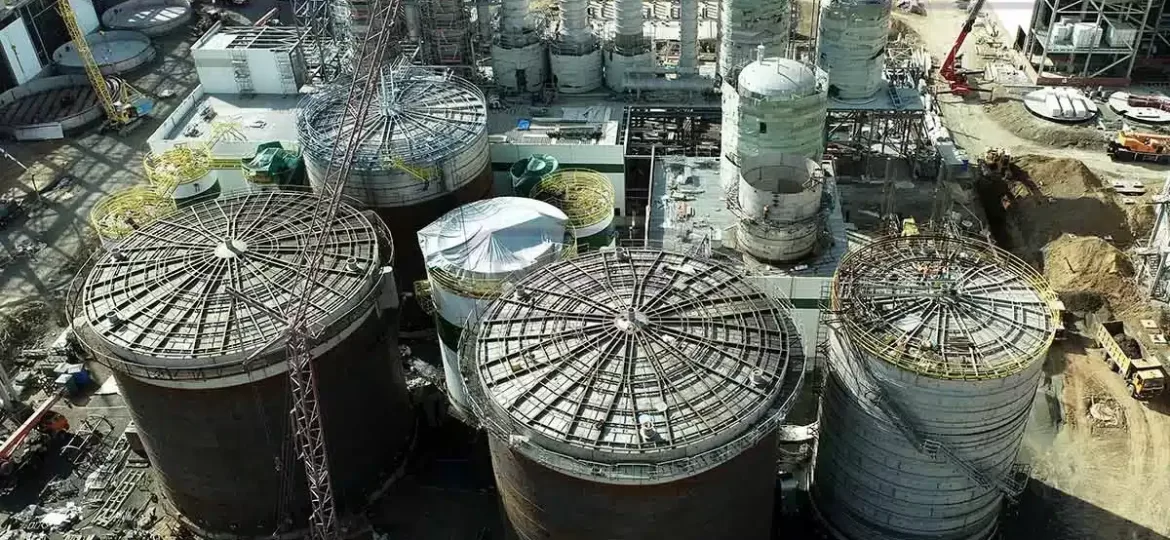

Types of Tanks in a Typical Tank Farm
Depending on the stored material, tank farms use different types of storage solutions:
| Tank Type | Ideal For | Typical Capacity |
|---|---|---|
| Fixed Roof Tanks | Diesel, kerosene, vegetable oils | 500 m³ – 30,000 m³ |
| Floating Roof Tanks | Gasoline, naphtha, light volatiles | 10,000 m³ – 100,000 m³ |
| Cone Roof Tanks | Bitumen, base oils | 1,000 m³ – 50,000 m³ |
| Pressure Vessels | LPG, butane, ammonia | 250 m³ – 10,000 m³ |
Added Business Value
Beyond basic storage, a tank farm brings operational and commercial advantages:
- Customized Leasing Models: Ideal for traders and third-party storage customers
- Direct Port Access: Seamless loading and unloading via marine pipelines
- Customs Bonded Zones: Enables duty-free temporary storage and re-export
- Digital Monitoring: Access tank levels and temperature data in real-time
- JV & Investment Models: Share ownership structures available for long-term partners
Risk Control and Insurance-Ready Design
A well-designed tank farm proactively mitigates operational risks. The table below outlines typical risk factors and best practices:
| Risk | Prevention Strategy |
|---|---|
| Fire and Lightning | Foam systems, grounding, and spark arrestors |
| Overfill or Leakage | Double-bottom tanks, alarm systems, and auto shut-off valves |
| Environmental Damage | Concrete containment bunds and drainage recovery systems |
| Theft or Unauthorized Entry | Perimeter fencing, surveillance, and biometric access control |
| System Failure | Redundant SCADA, regular safety drills, and ISO 45001 compliance |
Conclusion
In conclusion, investing in a professionally built tank farm is not just about storage—it’s about control, resilience, and profitability. Whether for fuel trading, refining, or distribution, a tank farm can unlock new levels of efficiency and competitive advantage.
ATABAŞ GRUP offers full EPC (Engineering, Procurement, and Construction) services tailored to international standards. With decades of experience and an unwavering focus on quality, we transform industrial storage from a liability into a high-performing strategic asset.
